Number Line Talk, Tasks, and Practice Pages
NLT 3.5 A1 — Measure to Label and Locate Fractions
NLT Objectives
This Number Line Talk targets the following essential concepts and strategies:
The length of a unit-fraction-bar is defined by the number of equal-length bars that measure a length of 1.
The numerator of a fraction is the number of unit-fraction-bars that measure to a given point.
Two numbers that represent the same point on a number line are called equivalent.
Conceptual Overview
This Number Line Talk introduces unit-fraction-bars to measure and label points that fall between whole numbers on number lines. The length of a unit-fraction-bar is defined by the number of equal-length bars that measure from zero to 1. In addition, unit-fraction-bars will be used to label fractions greater than one and to identify fractions that are equivalent to whole numbers.
Unit-fraction-bars are sets of equal-length bars that measure a length of 1. In the example below, three equal-length bars measure the same length as a 1-bar in the measurement key. So, each of these unit-fraction-bars measures a length of 1/3.
On the number line, one 1/3-bar measures from zero to 1/3, and two 1/3-bars measures from zero to 2/3.
By definition, three 1/3-bars or 3/3 measures from zero to the tick mark for 1. Numbers that measure to the same point on a number line are defined to be equivalent.
Unit fraction bars are also used to measure fractions greater than 1.
Because the NSONL Manipulative Kit only contains enough unit fraction bars to measure from zero to 2 on this number line, fraction strips in the manipulative kit are used to measure fractions greater than 2. In the example below, the fraction strip is used to skip count to measure 3/3, 6/3, and 9/3. Then, one additional 1/3-bar measures to 10/3.
Related Professional Learning Videos
Represent Fractions and Mixed Numbers Using Measurement Bars
Materials List for Number Line Talk
The following number line segments and measurement bars are used in this Number Line Talk.
These resources are available in the Grade 3 Number Line Measurement Manipulative Kit for magnetic whiteboards, which can be purchased on this website. Printable versions of the bars and fraction strips can be downloaded by clicking on the links below.
NLT Materials List: Measurement Bars and Fractions Strips
Printable Whiteboard Manipulative PDF
Print these PDFs on white card stock. At least two copies of the fraction bars should be printed. Then, an accurate paper cutter can be used to cut out the individual unit fraction bars and whole fraction strips. Finally, strips of adhesive magnetic sheets can be cut to size and mounted on the back of each bar and strip.
Note: Once you have drawn a 48-inch line on a whiteboard, use one of the fraction strips to measure off and draw the tick marks. This will ensure that the fraction bars and strips measure accurately on the number line.
Click on the image to download a PDF.
Video Overview and Instructional Notes
Click on the image to download a PDF.

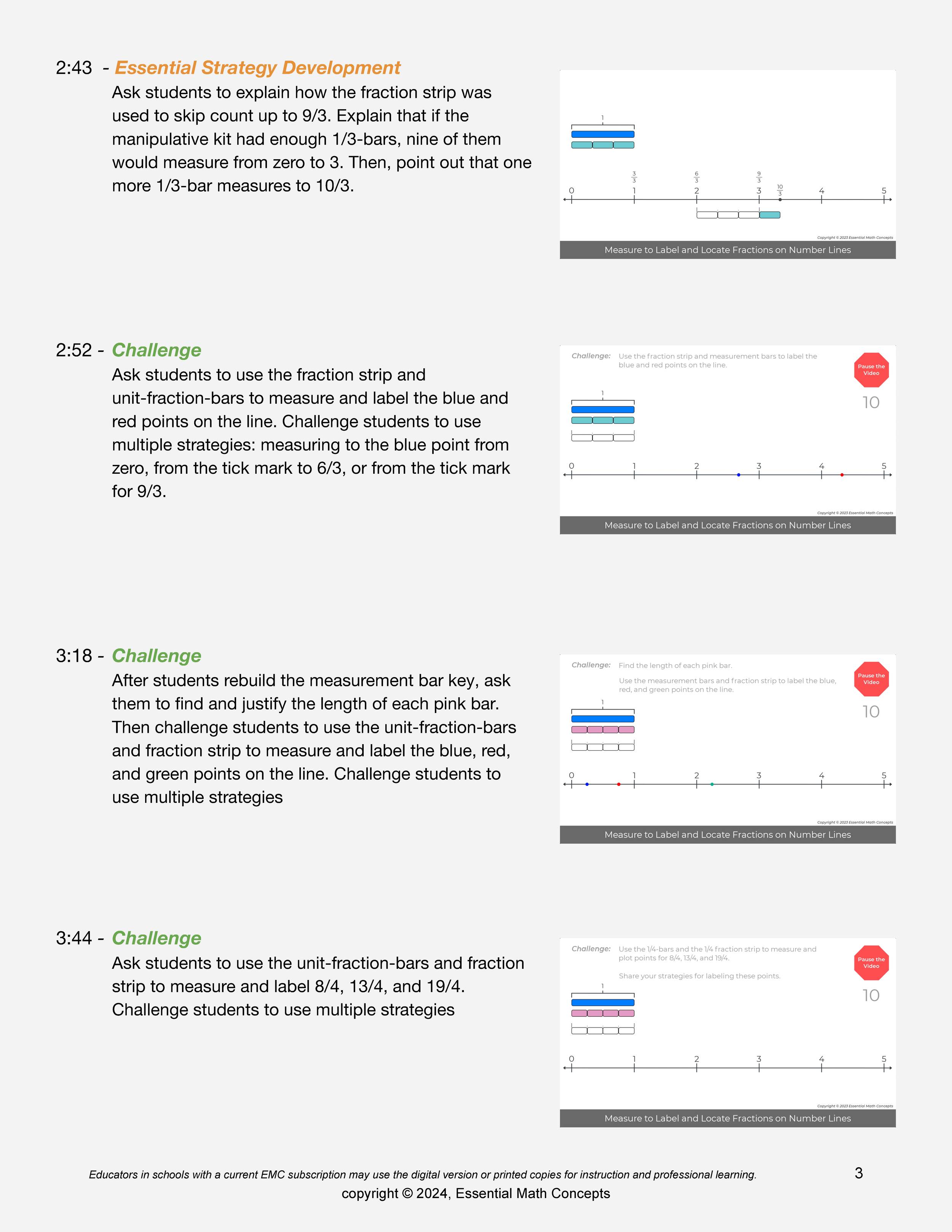

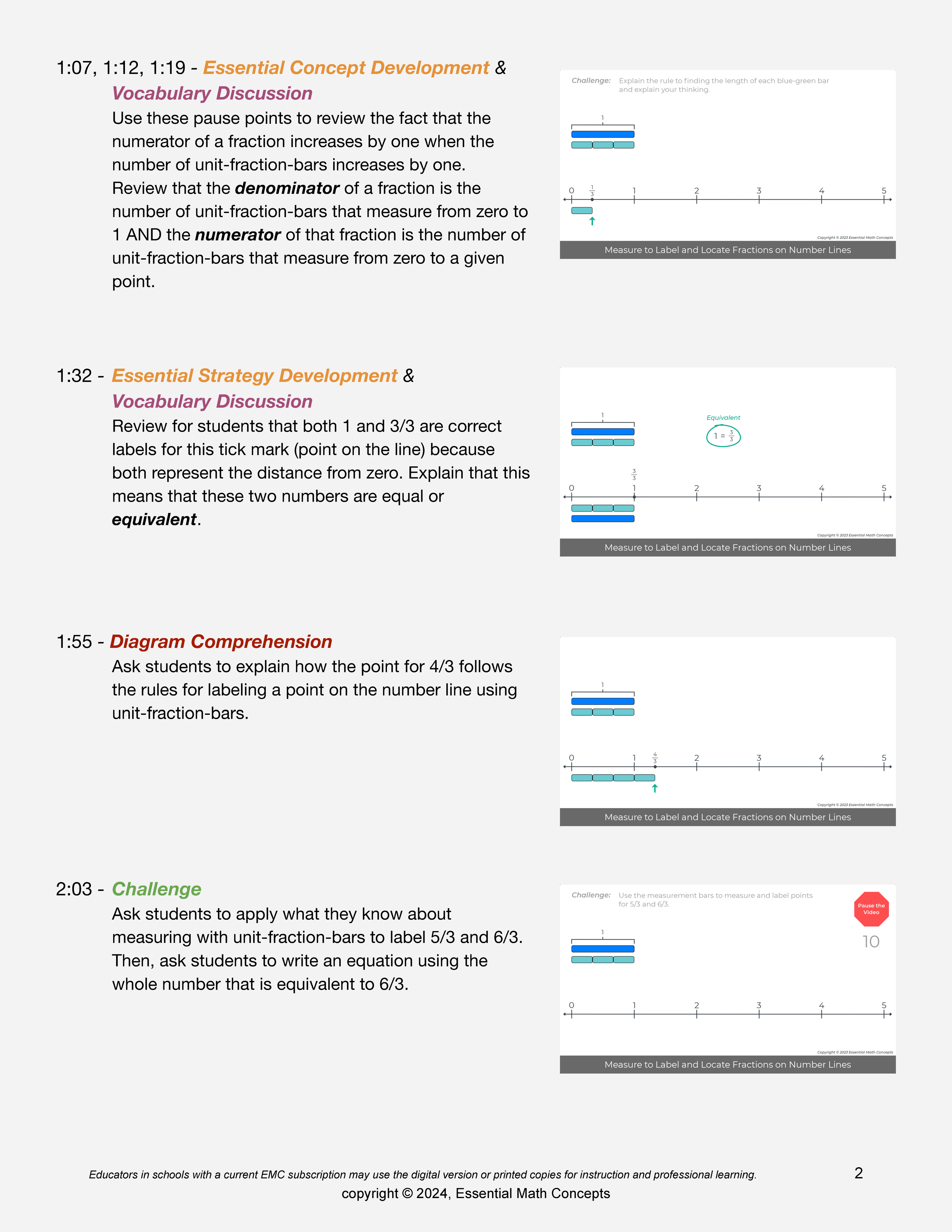

The Video Overview and Instructional Notes outline the instructional highlights of this Number Line Talk and lists the essential strategies and concepts that are introduced or reviewed. In addition, video pause points with instructional notes identify important representations, strategies, and concepts and offer suggestions for leading the Challenge discussions with students.
VOIN for Number Line Talk 3.5 A1
Click on image to download PDF
Daily Number Line Tasks
The Daily Number Line Tasks can be represented on the whiteboard so students entering the classroom can review and complete the task. Then, to start class, students can share strategies to measure and label points on the number line. This brief activity allows teachers to review important concepts and strategies introduced in the Number Line Talk Video and applied on the Number Line Practice Pages.
Daily Number Line Tasks—3.5 A1
Number Line Practice Pages

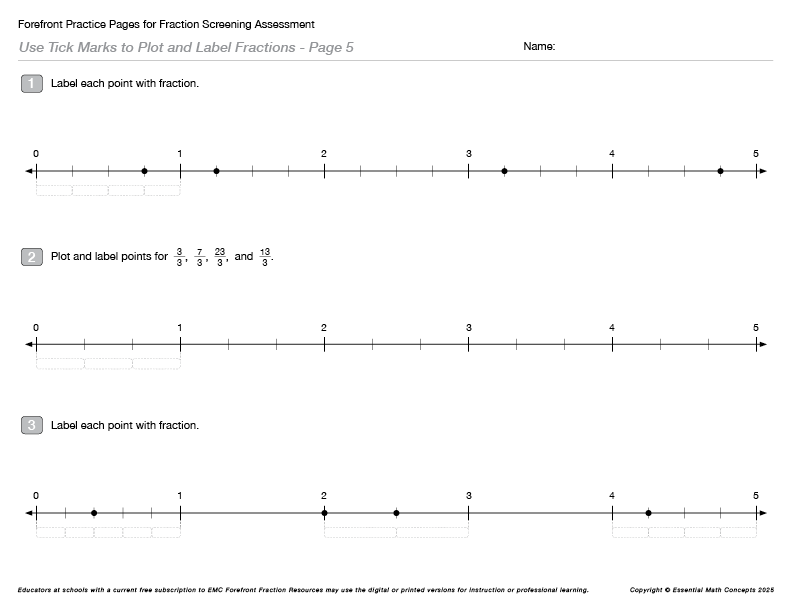

The Number Line Practice Pages challenge students to apply the concepts and strategies that were introduced in the Number Line Talks and reviewed in each Daily Number Line Task.
Measurement-Bar Ruler
Students will use the rulers to complete some Number Line Practice Pages. A PDF of a set of rulers is included as the last page of the PDF for the Practice Pages. Print these rulers using the same printer/copier used to print the Practice Pages. Then, use a paper cutter to cut out and trim the rulers. This process ensures that the printed size of the rulers and Practice Pages are the same so that rulers measure accurately on the Practice Pages.
PDF of Number Line Practice Pages and Printable Rulers —NLT 3.5 A1
Click on image to download PDF
